Springboot发布与访问WebService接口|小杨杂货铺

Springboot项目发布WebService接口(基于CXF)

pom依赖

	<!-- CXF webservice -->
        <dependency>
            <groupId>org.apache.cxf</groupId>
            <artifactId>cxf-spring-boot-starter-jaxws</artifactId>
            <version>3.3.2</version>
        </dependency>

配置类

package com.webservice.outservice.serviceReleaseConfig;

import com.webservice.outservice.impl.SSOWebServiceImpl;
import com.webservice.outservice.interfaces.ICzpWebService;
import com.webservice.outservice.impl.CzpWebServiceImpl;
import com.webservice.outservice.interfaces.ISSOWebService;
import org.apache.cxf.Bus;
import org.apache.cxf.bus.spring.SpringBus;
import org.apache.cxf.jaxws.EndpointImpl;
import org.apache.cxf.transport.servlet.CXFServlet;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.web.servlet.ServletRegistrationBean;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

import javax.xml.ws.Endpoint;

/**
 * 配置并发布
 */
@Configuration
public class WebServiceConfig {
    	@Autowired
    	private Bus bus;

    	/**
     	* 此方法作用是改变项目中服务名的前缀名，此处127.0.0.1或者localhost不能访问时，请使pconfig查看本机ip来访问
     	* 此方法被注释后：wsdl访问地址为：http://127.0.0.1:8090/services/czp/czpWebService?wsdl
     	* 去掉注释后：wsdl访问地址为：http://127.0.0.1:8090/netOrder/czp/czpWebService?wsdl
     	*/
	@Bean
	public ServletRegistrationBean disServlet() {
		ServletRegistrationBean servletRegistrationBean = new ServletRegistrationBean(
				new CXFServlet(), "/netOrder/*");
		return servletRegistrationBean;
	}

   	@Bean(name = Bus.DEFAULT_BUS_ID)
    	public SpringBus Bus()
   	{
        	return  new SpringBus();
    	}

    	@Bean
    	public ICzpWebService czpService() {
        	return new CzpWebServiceImpl();
    	}

    	@Bean
	public ISSOWebService ssoService() {
		return new SSOWebServiceImpl();
	}

        @Bean
	/**
	 * 操作票相关服务发布
	 */
	public Endpoint endpointCzp() {
		EndpointImpl endpoint = new EndpointImpl(bus, czpService());
		endpoint.publish("/czp/czpWebService");
		return endpoint;
	}

	@Bean
	/**
	 * 单点登录相关服务发布
	 */
	public Endpoint endpointSSO() {
		EndpointImpl endpoint = new EndpointImpl(bus, ssoService());
		endpoint.publish("/sso/ssoWebService");
		return endpoint;
	}

}

接口服务实现类示例

package com.webservice.outservice.impl;

import com.webservice.outservice.interfaces.ICzpWebService;
import lombok.extern.slf4j.Slf4j;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Component;
import org.springframework.stereotype.Service;

import javax.jws.WebService;

@Slf4j
@Service("czpWebService")
		//对外发布的服务名
@WebService(serviceName="czpWebService",
	//指定你想要的名称空间，通常使用使用包名反转
        targetNamespace="http://service.czpservice.com",
	//服务接口全路径, 指定做SEI（Service EndPoint Interface）服务端点接口
        endpointInterface= "com.webservice.outservice.interfaces.ICzpWebService")
@Component
public class CzpWebServiceImpl implements ICzpWebService {

    	@Override
	public String reliefOfAShift(String param){
		return null;
	}
}

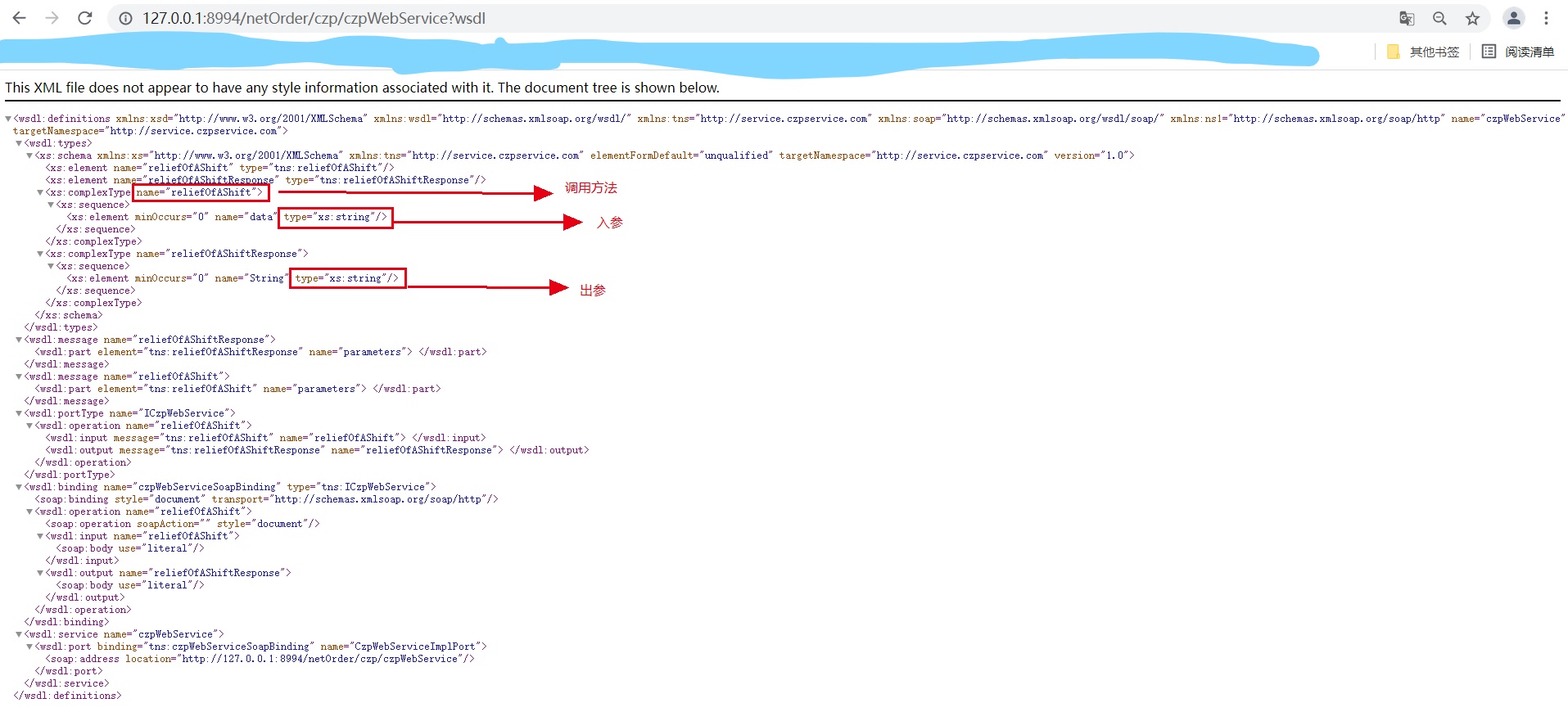

最终效果,访问(http://127.0.0.1:8090/netOrder/czp/czpWebService?wsdl)

Springboot项目访问WebService接口的两种形式

基于axis的接口访问(古老一点)

pom依赖

	<!-- axis 1.4 jar start -->
        <dependency>
            <groupId>org.apache.axis</groupId>
            <artifactId>axis</artifactId>
            <version>1.4</version>
        </dependency>

        <dependency>
            <groupId>axis</groupId>
            <artifactId>axis-jaxrpc</artifactId>
            <version>1.4</version>
        </dependency>

        <dependency>
            <groupId>commons-discovery</groupId>
            <artifactId>commons-discovery</artifactId>
            <version>0.2</version>
        </dependency>

        <dependency>
            <groupId>wsdl4j</groupId>
            <artifactId>wsdl4j</artifactId>
            <version>1.6.3</version>
        </dependency>
        <!-- axis 1.4 jar end -->

访问示例

	Service service = new Service();
	Call call = (Call) service.createCall();
	//设置调用地址
	call.setTargetEndpointAddress(thirdPartyUrlConfig.getOmsTwoServiceUrl());
	//设置调用方法和命名空间
	call.setOperationName(
		new QName(
		thirdPartyUrlConfig.getOmsTwoNameSpaceUrl(),
		thirdPartyUrlConfig.getOmsTwoMethodName()
		)
	);
	//设置入参类型,多个入参依次按照arg0,arg1,arg2 ...
	call.addParameter("arg0", XMLType.XSD_STRING, ParameterMode.IN);
	//设置返回值类型
	call.setReturnClass(String.class);
	//方法调用
	xml = (String)call.invoke(new Object[]{inparam});

基于cxf的接口访问

pom依赖同上面发布接口的依赖

调用示例

	//创建工厂实例
	JaxWsDynamicClientFactory dcf = JaxWsDynamicClientFactory.newInstance();
	//设置调用url,获取动态调用客户端
	Client client = dcf.createClient(thirdPartyUrlConfig.getOmsTwoServiceUrl());
	//构建入参报文
	String inParam = buildParam();
	//调用接口
	Object[] objects = client.invoke(thirdPartyUrlConfig.getOmsTwoMethodName(),inParam);
	//返回值
	xml = objects[0].toString();
